SubZero Heat Exchangers

Below are the heat exchangers we have available at this time, the most common and popular ones:

Replacement SubZero Heat Exchanger Index

Refrigerator Model#:

Refrigerator
Heat Exchangers:

Freezer Model#:

Freezer
Heat Exchangers:

501R

7015837PR

532/550

7015718PR

561, 590

7015840PR

550









Heat Exchanger Replacements

Heat Exchanger

Model

Specs

Buy Now!


Refrigerator/Freezer
UV Dye Filter/Drier
Replacement for
OEM 7006964

  • 100% XH-9 Beaded desiccant
  • Compatible with all new and existing refrigerants and oils.
  • Reduces wear & tear on component parts
  • Maximum working pressure 500psi.
  • Use on capillary or expansion valve systems.
  • Hermetically sealed, directional flow with access valve.
  • Copper shells and end tubes.
  • 100 Micron filter sieve.
  • Easy break off grooved ends.
  • Reduces clogged capillary tubes.
  • Magnetic reduction filter reduces microscopic steel, iron, & stainless steel particles as the refrigerant passes through the system.
IN STOCK
USA ONLY
On Sale: $26.95
$16.95
IN STOCK
International Only
$26.95


Accumulator
7015937
Accumulator
501R, 501F, 601F, 601F-2
Not used with all Serial Dates
Check 1st to make sure you need it

$49.65

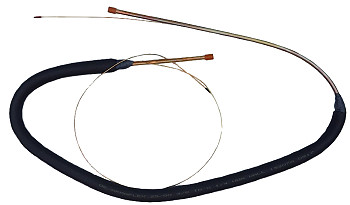

7016046
Refrigerator Heat Exchnager

2511
Use Starting With #228127
3211/3211RFD
Use From #227972 to #402307
Use From #408458 to #408657

Dimensions:
3/8" tube
& capillary
$129.00

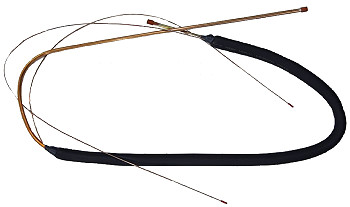

7016335
Refrigerator Heat Exchnager
3211/3211RFD
Use Starting With Serial #409267
Dimensions:
3/8" tube
& capillary
$129.00


7015837PR
Refrigerator Heat Exchanger
Replaces Part# 4251000

501R
Refrigerator
Use Prior to Serial #M/P959220
Use From Serial# M/P960170 to M/P1004774
From Serial# M/P959220 to M/P960169
Use Pt# 7015855
From Serial# M/P1004775 to M/P1204239
Use Pt# 7015855
From Serial# M/P1204240 to M/P1204489
Use Pt# 7014685
From Serial# M/P1204490 to M/P1208739
Use Pt# 7015855
Starting with Serial# M/P1208740
Use Pt# 7014685

Accumulator for:
501R, 501F, 601F, 601F-2

Not used with all Serial Dates
Check 1st to make sure you need it
Use Part# 7015937


501R Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00

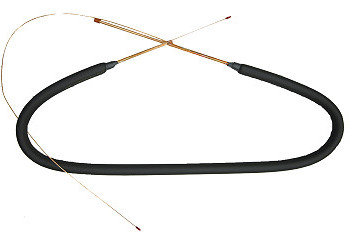

7015855PR
Refrigerator Heat Exchanger

501R
Refrigerator
Use From Serial# M/P959220 to M/P960169
Use From Serial# M/P1004775 to M/P1204239
Use From Serial# M/P1204490 to M/P1208739
Prior to Serial #M/P959220, and
From Serial# M/P960170 to M/P1004774
Use Pt# 7015837

501R Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00

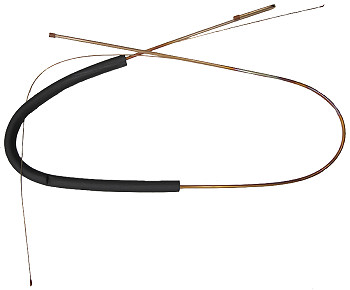

7014685PR
Refrigerator Heat Exchanger
Replaces Part# 4251310

501R, 601R, 601RG, 601R-2, 601RG-2
601R-3, 601RG-3
Refrigerator
501R
Use From Serial# M/P1204240 to M/P1204489
Use Starting with Serial# M/P1208740

Prior to Serial #M/P959220, and
From Serial# M/P960170 to M/P1004774
Use Pt# 7015837

601R/601RG
Use Regardless of Serial Number
601R-2/601RG-2
Use Regardless of Serial Number
601R-3/601RG-3
Use Regardless of Serial Number


501R Sealed System
Parts Manual

601R Sealed System
Parts Manual

601RG Sealed System
Parts Manual

601R-2 Sealed System
Parts Manual

601RG-2 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00

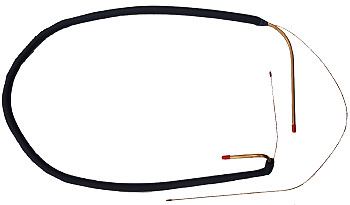

7016028PR
Freezer Heat Exchanger
Replaces Part# 4251010

501F
Freezer
Use Prior to Serial #960170 And Between
#960320 And #996399 Also Use Between
Serial #996575 and #1004774

From Serial# 960170 to #960319
Use Pt# 7019366
From Serial# 996400 to #996574
Use Pt#
7019366
From Serial# 1004775 to #1104939
Use Pt#
7019366
From Serial# 1104940 to #1105139
Use Pt# 7022316
From Serial# 1105140 to #1204489
Use Pt#
7019366
From Serial# 1204490 to #1212289
Use Pt#
7022316
From Serial# 1212290 to #1212489
Use Pt#
7019366
Starting with Serial# 1212490
Use Pt#
7022316

501F Sealed System
Parts Manual



Dimensions:
3/8" tube
& capillary

$136.00

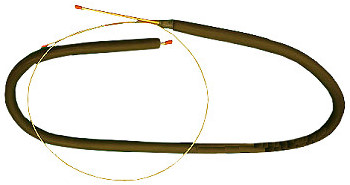

7019366PR
Freezer Heat Exchanger

501F
Freezer
Use From Serial# M/P960170 to M/P960319 And
From
Serial# M/P996400 to M/P996574 And
From
Serial# M/P1004775 to M/P1104939 And
From
Serial# M/P1105140 to M/P1204489 And
From
Serial# M/P1212290 to M/P1212489
Prior to Serial #960170, Between
#960320 And #996399 & Between
Serial #996575 and #1004774

Use Pt# 7016028
DOES NOT INCLUDE ARMAFLEX INSULATION,
IF NEEDED Use Pt# 1400500

501F Sealed System
Parts Manual



Dimensions:
3/8" tube
& capillary

$136.00

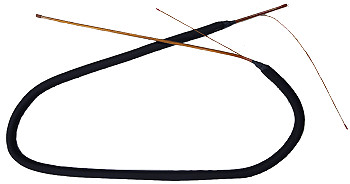

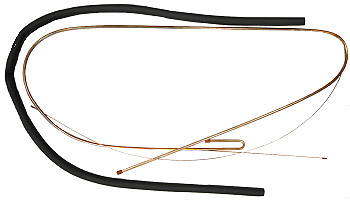

7022316PR
Freezer Heat Exchanger

501F, 601F, 601F-2
Freezer
501F
Use From Serial# M/P1104940 to M/P1105139
Use From Serial# M/P1204490 to M/P1212289
Use Starting with Serial# M/P1212490

Prior to Serial #960170, Between
#960320 And #996399 & Between
Serial #996575 and #1004774

Use Pt# 7016028

DOES NOT INCLUDE ARMAFLEX INSULLATION,
IF NEEDED ALSO ORDER Pt# 1400500
601F/601F-2
Use Regardless of Serial Number


501F Sealed System
Parts Manual



Dimensions:
3/8" tube
& capillary

$136.00

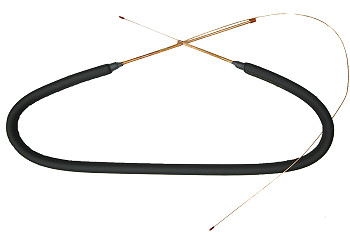

7015724PR
Refrigerator Heat Exchanger
Replaces Part# 4251050

511, 550
Refrigerator
511
Use Prior to Serial# M/P964470
Use From Serial# M/P964770 to M/P1004774

From Serial# M/P964470 to M/P964769
Use Pt# 7015850
From Serial# M/P1004775 to M/P1204689
Use Pt# 7015850
Starting with Serial# M/P1204690
Use Pt# 7015951
550
Use From Serial# M681166/P612941 to M/P964069
Use From Serial# M/P964470 to M/P984749
Use From Serial# M/P985150 to M/P1004774

Prior to Serial# M681166/P612941
Use Pt# 7015718


511 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


7015850PR
Refrigerator Heat Exchanger

511, 550
Refrigerator
511
Use From M/P964470 to M/P964769
Use From M/P1004775 to M/P1204689

Prior to Serial# M/P964470
From Serial# M/P964770 to M/P1004774
Use Pt# 7015724
Starting with Serial# M/P1204690
Use Pt# 7015951

550
Use From Serial# M/P964070 to M/P964469
Use From Serial# M/P984750 to M/P985149
Use From Serial# M/P1004775 to M/P1184139
Use From Serial# M/P1184240 to M/P1204989

From Serial# M681166/P612941 to M/P964069
From Serial# M/P964470 to M/P984749
From Serial# M/P985150 to M/P1004774

Use Pt# 7015724
Prior to Serial# M681166/P612941
Use Pt# 7015718


511 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


7015951PR
Refrigerator Heat Exchanger

511, 611
Refrigerator
511
Use Starting With Serial #M/P1204690
Prior to Serial# M/P964470, and
From Serial# M/P964770 to M/P1004774

Use Pt#
7015724
611
Use Prior to Serial #2147190
Starting With Serial #2147190
Use Pt# 7016012


511 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


7016012PR
Refrigerator Heat Exchanger
Replaces Pt# 4251570

611-2, 650-2, 685-2
Refrigerator

611-2
Use Starting With Serial #2147190
Prior to Serial #2147190
Use Pt#
7015951
650-2
Use Starting With Serial #2128097
Prior to Serial #2128097
Use Pt# 7015918
685-2
Use Starting With Serial #2271174
Prior to Serial #2271174
Use Pt# 7014670


511 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


7015918PR
Refrigerator Heat Exchanger

550, 650
Refrigerator

550
Use From Serial# M/P1184140 to M/P1184239 and Starting With M/P1204990
Prior to Serial# M681166/P612941
Use Pt# 7015718

650
Use Prior to Serial #2128097
Starting With Serial #2128097
Use Pt# 7016012

511 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00

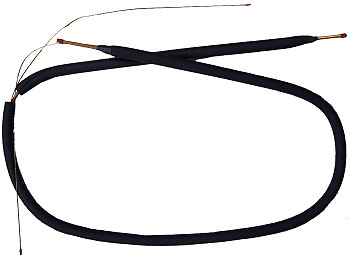

7016119PR
Freezer Heat Exchanger
Replaces Part# 4251040

511, 550
Freezer
511
Use Prior to Serial# 964470
Use From Serial #964770 to #1004774

From Serial# 964470 to #964769
Use Pt# 7016591
From Serial# 1004775 to #1204689
Use Pt#
7016591
Starting With Serial# 1204690
Use Pt# 7016527
550
Use From Serial# M681166/P612941 to M/P964069
Use From Serial# 964470 to #984749
Use From Serial# 985150 to #1004774

For Additional Serial#'s
Use Pt# 7016107

511 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$136.00


7016591PR
Freezer Heat Exchanger

511, 550
Freezer
511
Use From Serial# M/P964470 to M/P964769
Use From Serial# M/P1004775 to M/P1204689

Use Prior to Serial# 964470
From Serial #964770 to #1004774

Use Pt# 7016119
550
Use From Serial# M/P964070 to M/P964469
Use From Serial# M/P984750 to M/P985149
Use From Serial# M/P1004775 to M/P1184139
Use From Serial# M/P1184240 to M/P1204989

Prior to Serial# M681166/P612941

Use Pt# 7016107

511 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$166.00


7016527PR
Freezer Heat Exchanger

511, 611, 611-2, 611-3
Freezer
511
Use Starting with Serial #M/P1204690

Use Prior to Serial# 964470
From Serial #964770 to #1004774

Use Pt# 7016119
611
Use Regardless of Serial Number
611-2
Use Regardless of Serial Number
611-3
Use Regardless of Serial Number


511 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$119.00

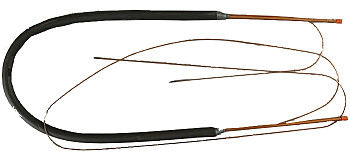

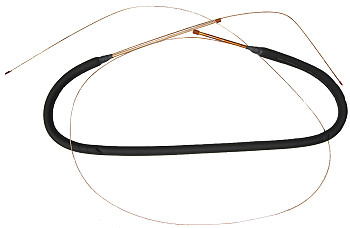

7015718PR
Refrigerator Heat Exchanger
Replaces Part# 4250960

532/550
Refrigerator
532
Use Prior to Serial# M681566/P612141

From Serial# M681566/P612141 to M/P964769
Use Pt# 7020563
From Serial# M/P964770 to M/P965069

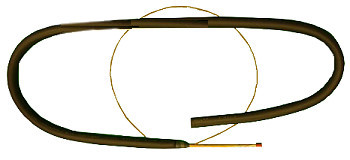

Use Pt# 7015832
From Serial# M/P965070 to M/P990699
Use Pt# 7020563
From Serial# M/P990700 to M/P990999
Use Pt#
7015832
From Serial# M/P991000 to M/P1004774
Use Pt# 7020563
From Serial# M/P1004775 to M/P1185039
Use Pt#
7015832
From Serial# M/P1185040 to M/P1185139

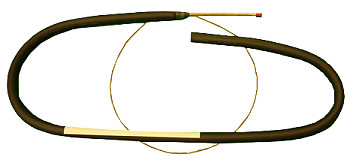

Use Pt# 7014670
From Serial# M/P1185140 to M/P1203739
Use Pt#
7015832
From Serial# M/P1203740 to M/P1203839
Use Pt# 7014670
From Serial# M/P1203840 to M/P1206089
Use Pt#
7015832
Starting with M/P1206090
Use Pt# 7014670
550
Use Prior to Serial# M681166/P612941

From Serial# M681166/P612941 to M/P964069
Use Pt# 7015724
From Serial# M/P964070 to M/P964469
Use Pt# 7015850
From Serial# M/P964470 to M/P984749
Use Pt# 7015724
From Serial# M/P984750 to M/P985149
Use Pt#
7015850
From Serial# M/P985150 to M/P1004774
Use Pt# 7015724
From Serial# M/P1004775 to M/P1184139
Use Pt#
7015850
From Serial# M/P1184140 to M/P1184239
Use Pt# 7015918
From Serial# M/P1184240 to M/P1204989
Use Pt#
7015850
Starting with Serial# M/P1204990
Use Pt#
7015918
532 Sealed System
Parts Manual

550 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$135.00

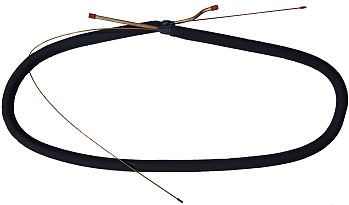

7015832PR
Refrigerator Heat Exchanger

532
Refrigerator
532

Use From Serial# M/P964770 to M/P965069
Use From Serial# M/P990700 to M/P990999
Use From Serial# M/P1004775 to M/P1185039
Use From Serial# M/P1185140 to M/P1203739
Use From Serial# M/P1203840 to M/P1206089
Prior to Serial# M681566/P612141
Use Pt# 7015718

532 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$135.00


7015858PR
Freezer Heat Exchanger
Replaces Part# 4250970

532
Freezer
532
Use Prior to Serial# M681566/P612141

From Serial# M681566/P612141 to M/P964769
Use Pt# 7015748
From Serial# M/P964770 to M/P965069
Use Pt# 7016120
From Serial# M/P965070 to M/P990699
Use Pt# 7015748
From Serial# M/P990700 to M/P990999
Use Pt#
7016120
From Serial# M/P991000 to M/P1004774
Use Pt# 7015748
From Serial# M/P1004775 to M/P1185039
Use Pt#
7016120
From Serial# M/P1185040 to M/P1185139
Use Pt# 7022314
From Serial# M/P1185140 to M/P1203739
Use Pt#
7016120
From Serial# M/P1203740 to M/P1203839
Use Pt# 7022314
From Serial# M/P1203840 to M/P1206089
Use Pt#
7016120
Starting with M/P1206090
Use Pt# 7022314

532 Sealed System
Parts Manual

550 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


7016120PR
Freezer Heat Exchanger
Replaces Part# 4250970

532, 561, 590
Freezer
532
Use From Serial# 964770 to #965069
Use From Serial# 990700 to #990999
Use From Serial# 1004775 to #1185039
Use From Serial# 1185140 to #1203739
Use From Serial# 1203840 to #1206089

Prior to Serial# M681566/P612141
Use Pt# 7015858
561
Use From Serial #965470 to #965869
Use From Serial# 1004775 to #1198139
Use From Serial# 1198390 to #1203139

Use Prior to Serial# M/P965470
From Serial# M/P965870 to M/P1004774
Use Pt#
7015748
590
Use From Serial #965870 to #966269
Use From Serial 1004775 to #1197839

Use Prior to Serial #965870
From Serial# 966270 to #1004774
Use Pt#
7016694


532 Sealed System
Parts Manual

550 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


7016694PR
Freezer Heat Exchanger
Replaces Part# 4251090

590
Freezer
590
Use Prior to Serial #965870
Use From Serial# 966270 to #1004774

From Serial# 965870 to #966269
Use Pt# 7016120
From Serial# 1004775 to #1197839
Use Pt#
7016120
Starting With Serial# #1197840
Use Pt# 7016550


532 Sealed System
Parts Manual

550 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


7016107PR
Freezer Heat Exchanger
Replaces Part# 4250910

550, 2811
Freezer
550
Use Prior to Serial# M681166/P612941

From Serial# M681166/P612941 to M/P964069
Use Pt# 7016119
From Serial# 964070 to #964469
Use Pt#
7016591
From Serial# 964470 to #984749
Use Pt# 7016119
From Serial# 984750 to #985149
Use Pt#
7016591
From Serial# 985150 to #1004774
Use Pt# 7016119
From Serial# 1004775 to #1184139
Use Pt#
7016591
From Serial# 1184140 to #1184239
Use Pt# 7021954
From Serial# 1184240 to #1204989
Use Pt#
7016591
From Serial# 1204990 to #1209339
Use Pt#
7021954
From Serial# 1209340 to #1210039
Use Pt# 7022315
From Serial# 1210040 to #1214589
Use Pt#
7016591
Starting With #1214590
Use Pt#
7022315
2811
Use Regardless of Serial Number

550 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$139.00


7021954PR
Freezer Heat Exchanger

550
Freezer
550
Use From Serial #1184140 to #1184239
Use From Serial #1204990 to #1209339

Prior to Serial# M681166/P612941
Use Pt# 7016107

550 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$160.00


7022315PR
Freezer Heat Exchanger
Replaces Pt# 4251270

550
Freezer
550
Use From Serial #1184140 to #1184239
Use From Serial #1204990 to #1209339

Prior to Serial# M681166/P612941
Use Pt# 7016107

550 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


7014670PR
Refrigerator Heat Exchanger
Replaces Part# 4251300

532, 590, 632, 680, 690, 685-2, 695-2
Refrigerator
532
Use From Serial# M/P1185040 to M/P1185139
Use From Serial# M/P1203740 to M/P1203839
Use Starting with Serial# M/P1206090

For additional Serial#'s
Use Pt# 7015718

590
Use Starting with Serial# M/P1197840

For additional Serial#'s
Use Pt# 7020563

632
Use Prior to Serial# 2128562

Starting with Serial# 2128562
Use Pt# 7016404
680/685-2
Use From Serial# 1810000 to #2271174

Prior to Serial# 1810000
Use Pt# 7014690
Starting w/Serial# 2271174
Use Pt# 7016012
690/695-2
Use Prior to Serial# 2269189

Starting with Serial# 2269189
Use Pt# 7016491


590 Sealed System
Parts Manual

632 Sealed System
Parts Manual

680 Sealed System
Parts Manual

690 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


7016491PR
Refrigerator Heat Exchanger
Replaces Part# 4251300

695-2
Refrigerator
695-2
Use Starting With Serial# 2269189

Prior to Serial# 2269189
Use Pt# 7014670

590 Sealed System
Parts Manual

632 Sealed System
Parts Manual

680 Sealed System
Parts Manual

690 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


7016404PR
Refrigerator Heat Exchanger
Replaces Part# 4251300

650G, 632-2, 650G-2
Refrigerator
632-2
Use Starting With Serial# 2128562

Prior to Serial# 2128562
Use Pt# 7014670
650G/650G2
Use Prior to Serial# 2223214

Starting With Serial# 2223214
Use Pt# 7019805


590 Sealed System
Parts Manual

632 Sealed System
Parts Manual

680 Sealed System
Parts Manual

690 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


7019805PR
Refrigerator Heat Exchanger

650G, 632-2, 650G-2
Refrigerator
632-2
Use Starting With Serial# 2128562

Prior to Serial# 2128562
Use Pt# 7014670
650G/650G2
Use Prior to Serial# 2223214

Starting With Serial# 2223214
Use Pt# 7019805


590 Sealed System
Parts Manual

632 Sealed System
Parts Manual

680 Sealed System
Parts Manual

690 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00

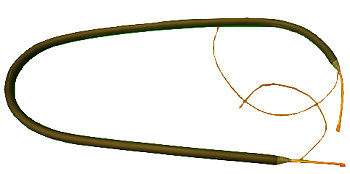

7016550PR
Freezer Heat Exchanger
Replaces Part# 4251340

590, 680, 690, 695-2
Freezer
590
Use Starting With Serial #1197840

For Additional Serial#'s
Use Pt# 7016694

680
Use Prior to Serial #1810000

From Serial# #1810000 to #2271174
Use Pt# 7016221
690
Use Prior to Serial #1810000

Starting With Serial# 1810000
Use Pt# 7019342
695
Use Regardless of Serial Number

590 Sealed System
Parts Manual

680 Sealed System
Parts Manual

690 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$136.00


7016221PR
Freezer Heat Exchanger
Replaces Part# 4251250

561, 680, 685-2
Freezer
561
Use From Serial# 1198140 to #1198389
Use Starting With Serial# 1203140

Use Prior to Serial# M/P965470
From Serial# M/P965870 to M/P1004774
Use Pt#
7015748
680/685-2
Use From Serial #1810000 to #2271174

Prior to Serial# 1810000
Use Pt# 7016550
Starting With Serial# 2271174
Use Pt# 7022318

590 Sealed System
Parts Manual

680 Sealed System
Parts Manual

690 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$136.00


7022318PR
Freezer Heat Exchanger

685-2
Freezer
685-2

Use Starting With Serial #2271174
From Serial# 1810000 to #2271174
Use Pt# 7016221


590 Sealed System
Parts Manual

680 Sealed System
Parts Manual

690 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$136.00


7019342PR
Freezer Heat Exchanger
Replaces Part# 4251340

690, 695-2
Freezer
Use From Serial #1810000 to #2269189
Prior to Serial# 1810000
Use Pt# 7016550
Starting With Serial# 2269189
Use Pt# 7006504

690 Sealed System
Parts Manual

695-2 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$136.00


7006504PR
Freezer Heat Exchanger
Replaces Part# 4251340

695-2, 695-3
Freezer
Use Starting with Serial #2269189
Prior to Serial #2269189
Use Pt# 7019342

695-2 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$136.00

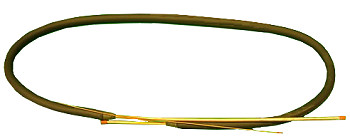

7022314PR
Freezer Heat Exchanger
Replaces Part# 4251260

532, 632, 632-2, 632-3
Freezer
532
Use From #P1185040 to #1185139 And
From #1203740 to #1203839 And Also
Starting With #1206090

For Additional Serial#'s
Use Pt# 7015858
632
Use Regardless of Serial Number
632-2
Use Regardless of Serial Number
632-3
Use Regardless of Serial Number

632 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00

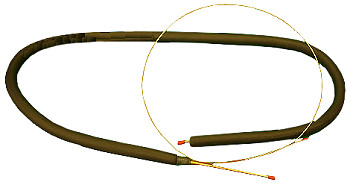

7014690PR
Refrigerator Heat Exchanger
Replaces Part# 4251240

542, 561, 642, 680
Refrigerator
542
Use Regardless of Serial Number
561
Use From Serial# M/P1198140 to M/P1200489
Use Starting with Serial# M/P1203140

Prior to Serial# P965870
From Serial# 966270 to #1004774

Use Pt# 7020563

642
Use Prior to Serial# 2143499
Starting With Serial# 2143499
Use Pt# 7016178
680
Use Prior to Serial# 1810000
Starting With Serial# 1810000
Use Pt# 7014670


542 Sealed System
Parts Manual

642 Sealed System
Parts Manual

680 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


7016178PR
Refrigerator Heat Exchanger
Replaces Part# 4251240

642-2
Refrigerator
Use Starting With Serial #2143499
Prior to Serial# 2143499
Use Pt# 7014690


542 Sealed System
Parts Manual

642 Sealed System
Parts Manual

680 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


7022317PR
Freezer Heat Exchanger
Replaces Part# 4251400

542, 642, 642-2
Freezer
Use Regardless of Serial Number


542 Sealed System
Parts Manual

642 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$72.00

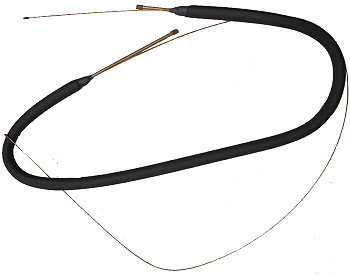

7020563PR
Refrigerator Heat Exchanger
Replaces Part# 4250980

532, 561, 590
Refrigerator
532
Use From Serial# M681566/P612141 to M/P964769
Use From Serial #965070 to #990699
Use From Serial #991000 to #1004774

For Additional Serial#'s
Use Pt# 7015718
561
Use Prior to Serial# 965470
Use From Serial# 965870 to #1004774

From Serial# 965470 to 965869
Use Pt# 7015840
From Serial#1004775 to #1198139
Use Pt#
7015840
From Serial#1198140 to #1200489
Use Pt# 7014690
From Serial#1200490 to #1203139
Use Pt#
7015840
Starting with Serial#1203140
Use Pt# 7014690
590
Use Prior to Serial #P965870
Use From #966270 to #1004774

From #965870 to #966269
Use Pt#
7015840
From #1004775 to #1197839
Use Pt#
7015840
Starting With #1197840
Use Pt# 7014670

561 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$136.00


7015840PR
Refrigerator Heat Exchanger
Replaces Part# 4250980

561, 590
Refrigerator
561
Use From Serial# M/P965470 to M/P965869
Use From Serial# M/P1004775 to M/P1198139
Use From Serial# M/P1200490 to M/P1203139

Use Prior to Serial# 965470
From Serial# 965870 to #1004774
Use Pt#
7020563
Starting with Serial#1203140
Use Pt# 7014690

590
Use From Serial# M/P965870 to M/P966269
Use From Serial# M/P1004775 to M/P1197839

Use Prior to Serial #P965870
From Serial# 966270 to #1004774
Use Pt#
7020563

561 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$136.00


7015748PR
Freezer Heat Exchanger
Replaces Part# 4250990

532, 561
Freezer
532
Use From Serial# M681566/P612141
to M/P964769
Use From Serial# M/P965070 to M/P990699
Use From Serial# M/P991000 to M/P1004774

Prior to Serial# M681566/P612141

Use Pt# 7015858
561
Use Prior to Serial# M/P965470
Use From Serial# M/P965870 to M/P1004774

From Serial# M/P965470 to M/P965869
Use Pt# 7016120
From Serial# M/P1004775 to M/P1198139
Use Pt#
7016120
From Serial# M/P1198140 to M/P1198389
Use Pt# 7016221
From Serial# M/P1198390 to M/P1203139
Use Pt#
7016120
Starting with Serial# M/P1203140
Use Pt# 7016221


561 Sealed System
Parts Manual

Dimensions:
3/8" tube
& capillary

$129.00


If you have any questions, please let us know.

Contact Email Address: Rtnoww@aol.com

Sorry, but we are so busy filling orders, we don't have time to answer the phone.
If you have questions, please email us.


Home | About Us | Wholesale Application | Parts Distributor Login | Service Company Login | Contact Us

Sale on Evaporators | Heat Exchangers | Compressors | Filter/Drier | Condenser Motors

Slide Rails | Light Bulbs | Ice Makers | Door Gaskets | Switches | Controls | Heaters | More...

Model & Serial Tag Location | Return Policy

RefrigeratorPartReplacements.com © 2013 All Rights Reserved
